هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65805N0040A001FERRITE CORE RM 40NH K1 2PCS |
0 |
|
برگه مشخصات |
RM5 | Box | Active | RM | RM 5 | K1 | - | 40 nH | ±3% | Gapped | 31.8 | 80 | 1.0 | 20.8 | 20.8 | - | 433.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
5698362321FERRITE CORE PS SET |
23 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | - | - | - | ±25% | Ungapped | - | 2400 | 29.0 | 55.3 | 164.0 | - | 9780.0 | Uncoated | 0.429" (10.90mm) | - | - |
|
B66461G0000X195FERRITE CORE ELP N95 1PC |
0 |
|
برگه مشخصات |
ELP43/10/28 | Box | Active | ELP | ELP 43 x 10 x 28 | N95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
PC95EIR22/5.5/15-ZFERRITE CORE HER 4.15UH 1SET |
0 |
|
برگه مشخصات |
Planar | Tray | Active | HER, PLT | EIR 22 x 5.5 x 15 | PC95 | - | 4.15 µH | ±25% | Ungapped | - | - | 0.51 | 46.1 | 23.2 | 36.3 | 1070.0 | Uncoated | 0.216" (5.50mm) | 0.870" (22.10mm) | 0.600" (15.25mm) |
|
HF60T31X13X19FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|
|
EP20-3C90FERRITE CORE EP 4.435UH 3C90 2PC |
0 |
|
برگه مشخصات |
- | Bulk | Active | EP | EP 20 | 3C90 | - | 4.435 µH | ±25% | Ungapped | 1840.0 | - | 0.52 | 41.1 | 78.7 | 60.8 | 3230.0 | Uncoated | 0.843" (21.40mm) | 0.945" (24.00mm) | 0.591" (15.00mm) |
|
B66461K0000X192FERRITE CORE I N92 |
0 |
|
برگه مشخصات |
I43/4/28 | Bag | Active | I | I 43 x 4 x 28 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
TX42/26/18-3C90FERRITE CORE TOROID 3C90 |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | 3C90 | 1.697" (43.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.736" (18.70mm) | - | - |
|

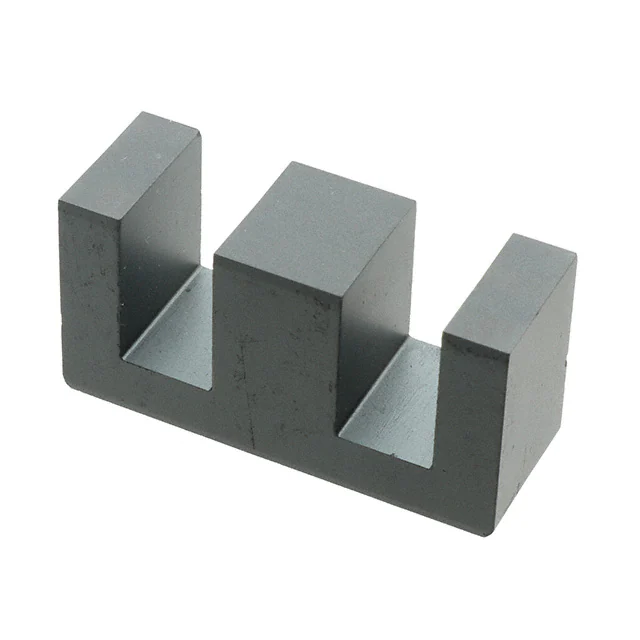

B66325G0000X130FERRITE CORE E N30 1PC |
5 |
|
برگه مشخصات |
E42/21/15 | Box | Active | E | E 42 x 21 x 15 | N30 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.598" (15.20mm) |
|
B65805J0000R097FERRITE CORE RM 2UH N97 2PCS |
0 |
|
برگه مشخصات |
RM5 | Cut Tape (CT) | Active | RM | RM 5 | N97 | - | 2 µH | -20%, +30% | Ungapped | 1480.0 | 2300 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
|
TX42/26/18-3E6FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | - | 1.697" (43.15mm) | - | ±30% | Ungapped | 10000.0 | - | 0.769 | 103.0 | 134.0 | - | 13810.0 | Epoxy | 0.736" (18.70mm) | - | - |
|
|
TX42/26/18-3E65FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | - | 1.697" (43.15mm) | - | ±25% | Ungapped | 5200.0 | - | 0.769 | 103.0 | 134.0 | - | 13810.0 | Epoxy | 0.736" (18.70mm) | - | - |
|
EC52/24/14-3C94FERRITE CORE EC 3C94 |
0 |
|
برگه مشخصات |
- | Bulk | Active | EC | EC 52 x 24 x 14 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.953" (24.20mm) | 2.055" (52.20mm) | 0.528" (13.40mm) |
|
5695302021FERRITE CORE PS 95 SET |
14 |
|
برگه مشخصات |
- | Bulk | Active | PS | - | 95 | 1.181" (30.00mm) | - | ±25% | Ungapped | - | 3000 | 35.6 | 45.3 | 127.0 | - | 5750.0 | Uncoated | - | - | - |
|
B65883A0000R087FERRITE CORE PQ 4.3UH N87 2PCS |
0 |
|
برگه مشخصات |
PQ40/40 | Box | Active | PQ | PQ 40 x 40 | N87 | - | 4.3 µH | -20%, +30% | Ungapped | 1680.0 | 2200 | 0.49 | 92.5 | 188.3 | 159.9 | 17430.0 | Uncoated | 0.783" (19.90mm) | 1.594" (40.50mm) | 1.102" (28.00mm) |
|
B66344G0000X127FERRITE CORE E N27 1PC |
18 |
|
برگه مشخصات |
E55/28/25 | Box | Active | E | E 55 x 28 x 25 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.984" (25.00mm) |
|
|
B64290A0022X033FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
T42/26/13 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
B65887E1000J087FERRITE CORE RM N87 |
0 |
|
برگه مشخصات |
RM14 | Box | Active | RM | RM 14 | N87 | - | - | - | Gapped | - | 2200 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
|
TX40/24/16-3E6FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 40 x 24 x 16 | - | 1.640" (41.65mm) | - | ±30% | Ungapped | 10000.0 | - | 0.769 | 96.3 | 125.0 | - | 12100.0 | Epoxy | 0.673" (17.10mm) | - | - |
|
B66387G1500X127FERRITE CORE E N27 1PC |
6 |
|
برگه مشخصات |
E65/32/27 | Box | Active | E | E 65 x 32 x 27 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
