هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

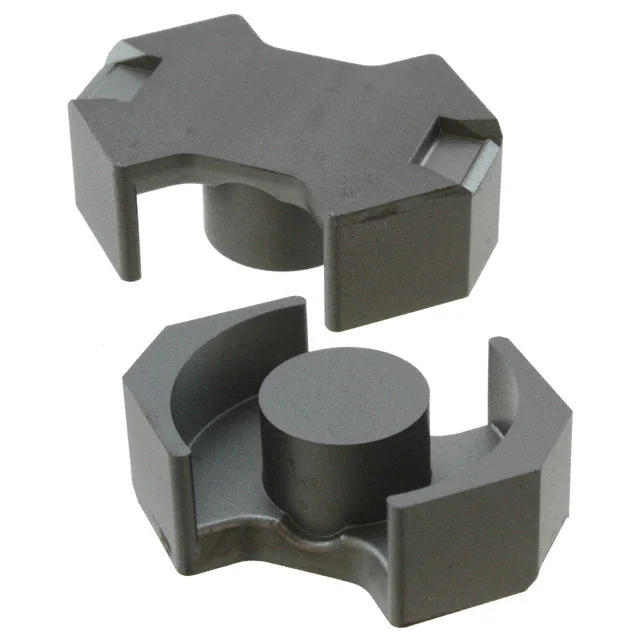

B65813J0250A041FERRITE CORE RM 250NH N41 2PCS |
506 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N41 | - | 250 nH | ±3% | Gapped | 89.0 | 2800 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
ETD54/28/19-3C97FERRITE CORE ETD 3C97 |
294 |
|
برگه مشخصات |
- | Bulk | Active | ETD | ETD 54 x 28 x 19 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.087" (27.60mm) | 2.156" (54.50mm) | 0.744" (18.90mm) |
|
B65531D0040A001FERRITE CORE P 40NH K1 2PCS |
1,570 |
|
برگه مشخصات |
P11/7 | Box | Active | P (Pot Core) | P 11 x 7 | K1 | 0.445" (11.30mm) | 40 nH | ±3% | Gapped | 32.0 | 80 | 1.0 | 15.9 | 15.9 | - | 253.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
B64290L0616X038FERRITE CORE TOROID 21.3UH T38 |
631 |
|
برگه مشخصات |
TX25.3/14.8/20 | Box | Active | Toroid | - | T38 | 1.047" (26.60mm) | 21.3 µH | ±30% | Ungapped | - | 10000 | 0.59 | 60.07 | 102.5 | - | 6157.0 | Epoxy | 0.839" (21.30mm) | - | - |
|
B65813J0000R049FERRITE CORE RM 2.9UH N49 2PCS |
572 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N49 | - | 2.9 µH | -20%, +30% | Ungapped | 1040.0 | 1500 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
B66365G1500X187FERRITE CORE ETD N87 1PC |
287 |
|
برگه مشخصات |
ETD44/22/15 | Box | Active | ETD | ETD 44 x 22 x 15 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) |
|
PQ32/30-3F36FERRITE CORE PQ 3F36 2PC SET |
1,508 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 32 x 30 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.193" (30.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
C055380A2FERRITE CORE TOROID 89NH MPP |
1,484 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 0.710" (18.03mm) | 89 nH | ±8% | Ungapped | - | 125 | - | 41.4 | 23.2 | - | 960.0 | Coated | 0.280" (7.11mm) | - | - |
|
|
CMC025016010HNANOCRYSTAL CORE TOROID 65.5UH |
244 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Nanocrystalline | 0.984" (25.00mm) | 65.5 µH | ±30% | Ungapped | - | 80000 | - | 64.3 | 37.0 | - | - | Polyester | 0.394" (10.00mm) | - | - |
|
|
B65813J0000R041FERRITE CORE RM 5.5UH N41 2PCS |
734 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N41 | - | 5.5 µH | -20%, +30% | Ungapped | 1960.0 | 2800 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
C055117A2FERRITE CORE TOROID 115NH MPP |
708 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 0.680" (17.27mm) | 115 nH | ±8% | Ungapped | - | 200 | - | 41.2 | 19.2 | - | 791.0 | Coated | 0.280" (7.11mm) | - | - |
|
|
PQ35/35-3F36FERRITE CORE PQ 3F36 2PC SET |
366 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 35 x 35 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.366" (34.70mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|

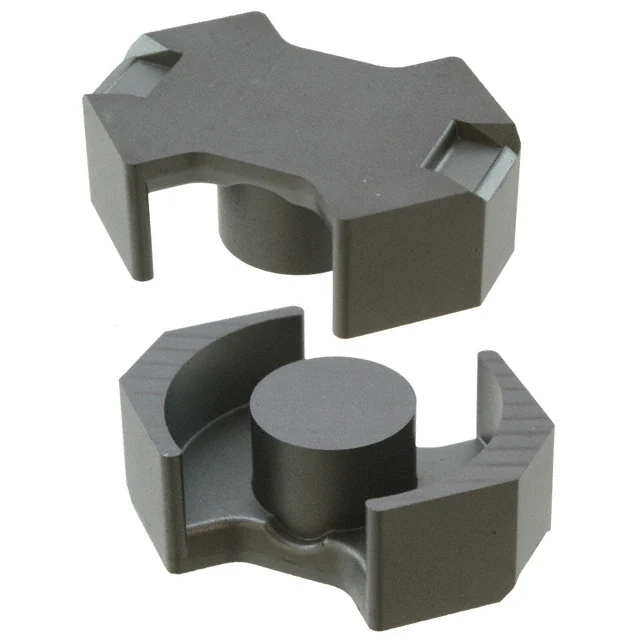

B65813J0630J041FERRITE CORE RM 630NH N41 2PCS |
879 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N41 | - | 630 nH | ±5% | Gapped | 225.0 | 2800 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
B65813J1600K041FERRITE CORE RM 1.6UH N41 2PCS |
209 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N41 | - | 1.6 µH | ±10% | Gapped | 572.0 | 2800 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
5975002701FERRITE CORE TOROID 75 |
678 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 75 | 1.400" (35.56mm) | - | ±25% | Ungapped | - | 5000 | - | 89.0 | 79.0 | - | 7000.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
C058059A2FERRITE CORE TOROID 43NH MPP |
118 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 0.930" (23.62mm) | 43 nH | ±8% | Ungapped | - | 60 | - | 56.7 | 31.7 | - | 1800.0 | Coated | 0.330" (8.38mm) | - | - |
|
|
5961002721FERRITE CORE TOROID 140NH 61 |
216 |
|
برگه مشخصات |
- | Box | Active | Toroid | - | 61 | 1.449" (36.80mm) | 140 nH | ±25% | Ungapped | - | 125 | 1.14 | 89.0 | 78.0 | - | 7000.0 | Epoxy | 0.539" (13.70mm) | - | - |
|
B66289K0000X187FERRITE CORE I N87 |
3,591 |
|
برگه مشخصات |
I38/4/25 | Tray | Active | I | I 38 x 4 x 25 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
|
B65651D0250A048FERRITE CORE P 250NH N48 2PCS |
1,726 |
|
برگه مشخصات |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N48 | 0.724" (18.40mm) | 250 nH | ±3% | Gapped | 120.0 | - | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
|
0077256A7FERRITE CORE TOROID 35NH KOOL MU |
262 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 1.605" (40.77mm) | 35 nH | ±8% | Ungapped | - | 26 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
