هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMC030020010HNANOCRYSTAL CORE TOROID 59.3UH |
191 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Nanocrystalline | 1.181" (30.00mm) | 59.3 µH | ±30% | Ungapped | - | 80000 | - | 78.5 | 41.0 | - | - | Polyester | 0.394" (10.00mm) | - | - |
|
E58/11/38-3F36FERRITE CORE E 3F36 |
115 |
|
برگه مشخصات |
- | Bulk | Active | E | E 58 x 11 x 38 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.413" (10.50mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
|
C055025A2MPP 300 PERM GREY 030 SIZE |
761 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 0.335" (8.51mm) | 124 nH | ±8% | Ungapped | - | 300 | - | 17.9 | 5.99 | - | 107.0 | Coated | 0.150" (3.81mm) | - | - |
|

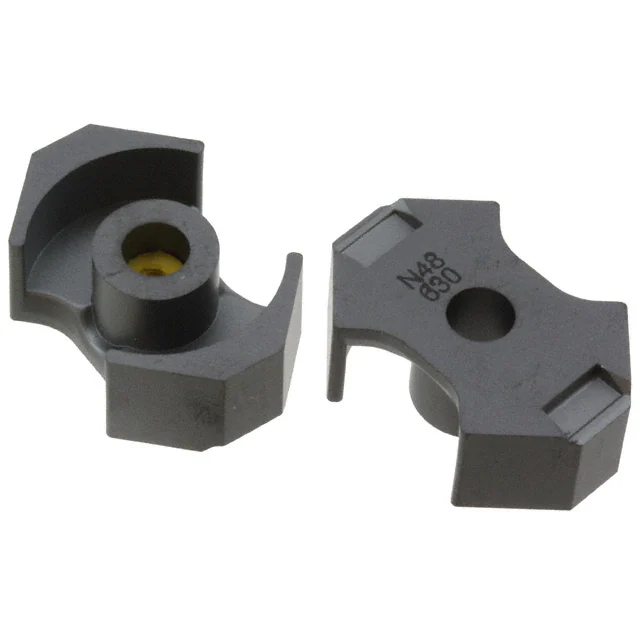

B65811F0630J048FERRITE CORE RM 630NH N48 2PCS |
1,197 |
|
برگه مشخصات |
RM8 | Box | Active | RM | RM 8 | N48 | - | 630 nH | ±5% | Gapped | 338.0 | - | 0.68 | 35.1 | 52.0 | - | 1825.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B66291K0000X187FERRITE CORE I N87 1PC |
780 |
|
برگه مشخصات |
I43/4/28 | Bulk | Active | I | I 43 x 4 x 28 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
B66395G0000X187FERRITE CORE ETD N87 1PC |
287 |
|
برگه مشخصات |
ETD54/28/19 | Box | Active | ETD | ETD 54 x 28 x 19 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.156" (54.50mm) | 0.760" (19.30mm) |
|
5977002721FERRITE CORE TOROID 2.25UH 77 |
123 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 77 | 1.449" (36.80mm) | 2.25 µH | -30%, +25% | Ungapped | - | 2000 | 1.1361 | 89.1 | 78.4 | - | 6991.0 | Plastic | 0.539" (13.70mm) | - | - |
|
|
C058350A2FERRITE CORE TOROID 105NH HI FLX |
477 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | High Flux | 0.958" (24.33mm) | 105 nH | ±8% | Ungapped | - | 125 | - | 58.8 | 38.8 | - | 2280.0 | Coated | 0.380" (9.65mm) | - | - |
|

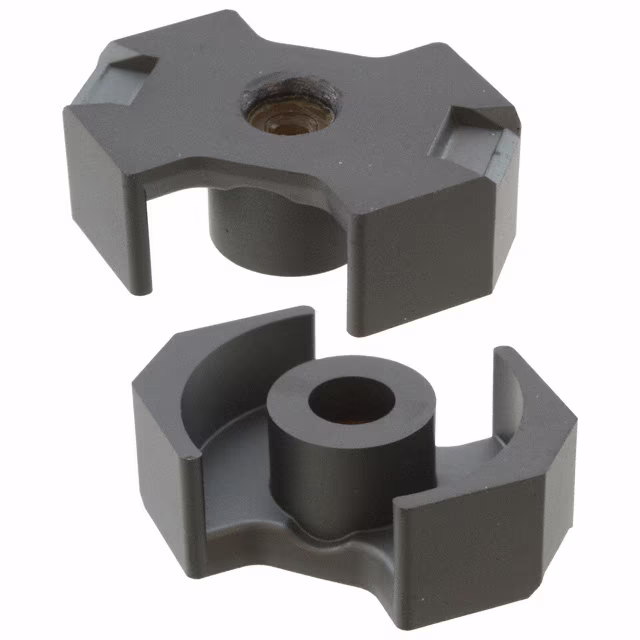

B65813N0630A048FERRITE CORE RM 630NH N48 2PCS |
2,245 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N48 | - | 630 nH | ±3% | Gapped | 254.0 | - | 0.5 | 42.0 | 83.0 | - | 3490.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|

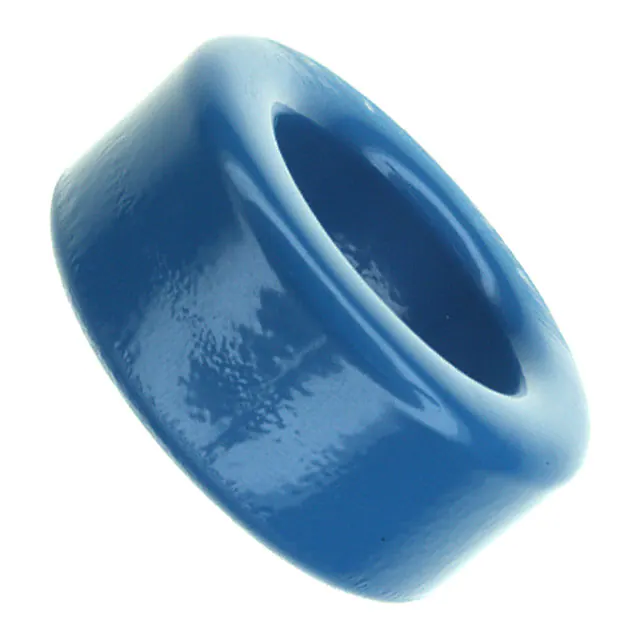

B64290L0674X830FERRITE CORE TOROID 5.75UH N30 |
785 |
|
برگه مشخصات |
TX36/23/15 | Tray | Active | Toroid | - | N30 | 1.476" (37.50mm) | 5.75 µH | ±25% | Ungapped | - | 4300 | 0.94 | 89.65 | 95.89 | - | 8597.0 | Epoxy | 0.638" (16.20mm) | - | - |
|
|
U67/27/14-3C91FERRITE CORE U 3C91 |
123 |
|
برگه مشخصات |
- | Bulk | Active | U | U 67 x 27 x 14 | 3C91 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.063" (27.00mm) | 2.650" (67.30mm) | 0.563" (14.30mm) |
|
B66335G1000X187FERRITE CORE E N87 1PC |
105 |
|
برگه مشخصات |
E55/28/21 | Box | Active | E | E 55 x 28 x 21 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.827" (21.00mm) |
|
|
0P45716UCFERRITE CORE UR 3.061UH P |
234 |
|
برگه مشخصات |
- | Bulk | Active | UR | - | P | - | 3.061 µH | - | Ungapped | - | 2500 | - | 163.0 | 171.0 | - | 27900.0 | Uncoated | 1.126" (28.60mm) | 2.270" (57.65mm) | 0.626" (15.90mm) |
|

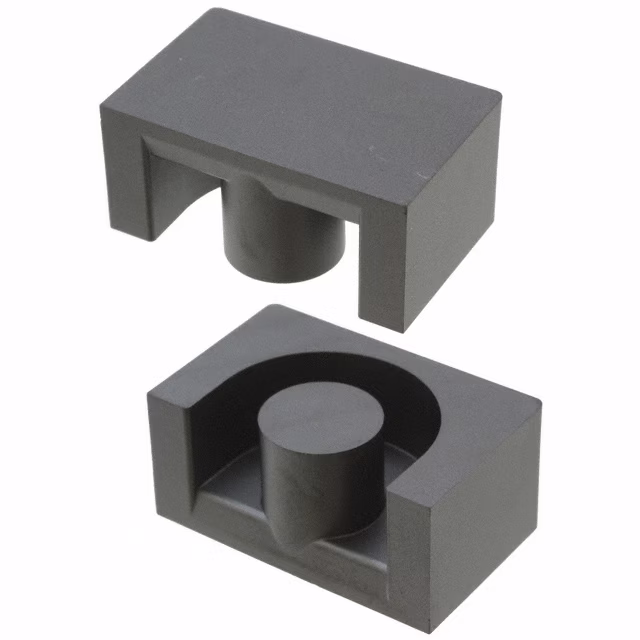

B65847A0000R030FERRITE CORE EP 6.7UH N30 2PCS |
712 |
|
برگه مشخصات |
EP20 | Box | Active | EP | EP 20 | N30 | - | 6.7 µH | -20%, +30% | Ungapped | 2730.0 | 5200 | 0.51 | 40.0 | 78.0 | 60.0 | 3120.0 | Uncoated | 0.425" (10.80mm) | 0.965" (24.50mm) | 0.602" (15.30mm) |
|
T60006L2030W358FERRITE CORE TOROID 15.5UH |
5,443 |
|
برگه مشخصات |
- | Box | Active | Toroid | - | - | 1.299" (33.00mm) | 15.5 µH | - | Ungapped | - | - | - | 78.5 | 40.0 | - | - | Uncoated | 0.492" (12.50mm) | - | - |
|
|
0070894A7KOOL MU ULTRA 060 PERM BLACK |
265 |
|
برگه مشخصات |
- | Tray | Active | Toroid | - | Kool Mµ | 1.060" (26.92mm) | 78 nH | ±8% | Ungapped | - | 60 | - | 63.5 | 65.4 | - | 4150.0 | Uncoated | 0.440" (11.18mm) | - | - |
|

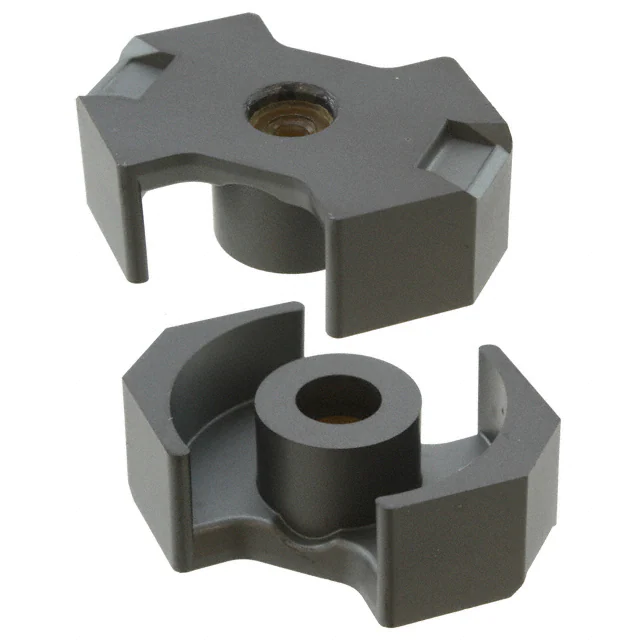

B65813N0400A048FERRITE CORE RM 400NH N48 2PCS |
773 |
|
برگه مشخصات |
RM10 | Box | Active | RM | RM 10 | N48 | - | 400 nH | ±3% | Gapped | 161.0 | - | 0.5 | 42.0 | 83.0 | - | 3490.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
PQ35/35-3C96FERRITE CORE PQ 3C96 2PC SET |
333 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 35 x 35 | 3C96 | - | - | ±25% | Ungapped | 1700.0 | - | 0.454 | 86.1 | 190.0 | 162.0 | 16300.0 | Uncoated | 1.366" (34.70mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|

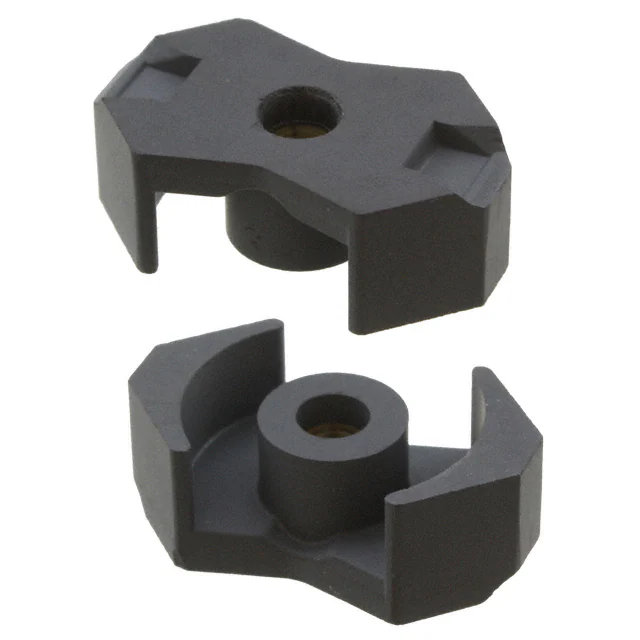

B65807N0040A001FERRITE CORE RM 40NH K1 2PCS |
2,032 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | K1 | - | 40 nH | ±3% | Gapped | 27.4 | 80 | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
|
C055848A2FERRITE CORE TOROID 32NH MPP |
1,331 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 0.800" (20.32mm) | 32 nH | ±8% | Ungapped | - | 60 | - | 50.9 | 22.1 | - | 1.12 | Coated | 0.250" (6.35mm) | - | - |
