هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0077254A7FERRITE CORE TOROID 168NH KOOLMU |
489 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 1.570" (39.88mm) | 168 nH | ±8% | Ungapped | - | 125 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.570" (14.48mm) | - | - |
|
|
0077083A7FERRITE CORE TOROID 81NH KOOL MU |
530 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu | 1.605" (40.77mm) | 81 nH | ±8% | Ungapped | - | 60 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
|
B65651W0000Y038FERRITE CORE P 12.6UH T38 2PCS |
2,500 |
|
برگه مشخصات |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | T38 | 0.724" (18.40mm) | 12.6 µH | -30%, +40% | Ungapped | 5710.0 | 10000 | 0.57 | 26.6 | 46.7 | 33.9 | 1242.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
B65661D0000R048FERRITE CORE P 3.8UH N48 2PCS |
568 |
|
برگه مشخصات |
P22/13 | Box | Active | P (Pot Core) | P 22 x 13 | N48 | 0.866" (22.00mm) | 3.8 µH | -20%, +30% | Ungapped | 1520.0 | - | 0.5 | 31.6 | 63.0 | - | 1990.0 | Uncoated | 0.268" (6.80mm) | - | - |
|
B65661W0000Y038FERRITE CORE P 16UH T38 2PCS |
450 |
|
برگه مشخصات |
P22/13 | Box | Active | P (Pot Core) | P 22 x 13 | T38 | 0.866" (22.00mm) | 16 µH | -30%, +40% | Ungapped | 5820.0 | 10000 | 0.46 | 33.2 | 72.6 | 58.1 | 2410.0 | Uncoated | 0.268" (6.80mm) | - | - |
|

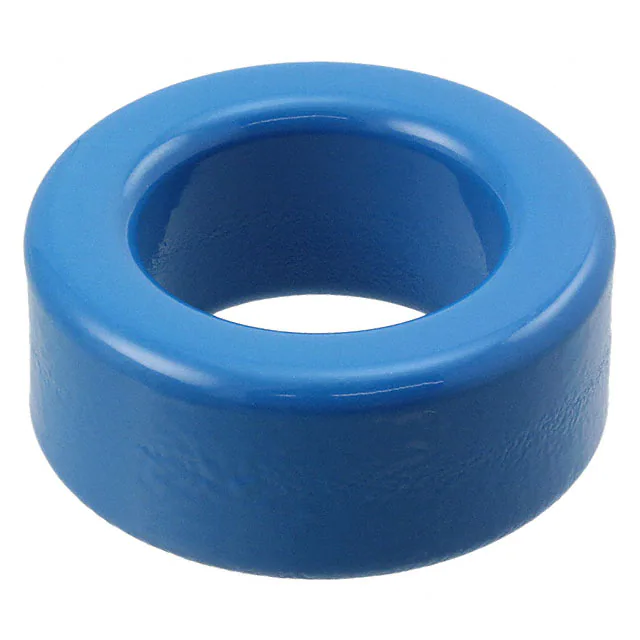

B64290L0674X087FERRITE CORE TOROID 2.94UH N87 |
2,244 |
|
برگه مشخصات |
TX36/23/15 | Box | Active | Toroid | - | N87 | 1.476" (37.50mm) | 2.94 µH | ±25% | Ungapped | - | 2200 | 0.94 | 89.65 | 95.89 | - | 8597.0 | Epoxy | 0.638" (16.20mm) | - | - |
|
|
0076071A7FERRITE CORE TOROID 61NH KOOL MU |
764 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu HF | 1.325" (33.66mm) | 61 nH | ±8% | Ungapped | - | 60 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.450" (11.45mm) | - | - |
|

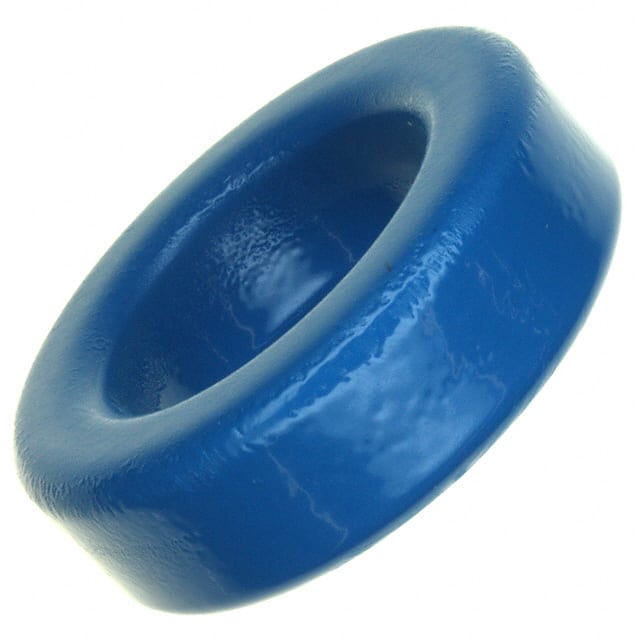

B64290L0022X830FERRITE CORE TOROID 5UH N30 |
4,045 |
|
برگه مشخصات |
TX42/26/13 | Tray | Active | Toroid | - | N30 | 1.717" (43.60mm) | 5 µH | ±25% | Ungapped | - | 4300 | 1.08 | 103.0 | 95.75 | - | 9862.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
B66367G0000X187FERRITE CORE ETD N87 1PC |
240 |
|
برگه مشخصات |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
|
PQ32/30-3C96FERRITE CORE PQ 3C96 2PC SET |
631 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 32 x 30 | 3C96 | - | - | ±25% | Ungapped | 1790.0 | - | 0.447 | 74.7 | 167.0 | 142.0 | 12500.0 | Uncoated | 1.193" (30.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
5967001201FERRITE CORE TOROID 67 |
1,096 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 67 | 1.142" (29.00mm) | - | - | Ungapped | - | 40 | - | 73.0 | 68.0 | - | 5000.0 | Uncoated | 0.545" (13.84mm) | - | - |
|

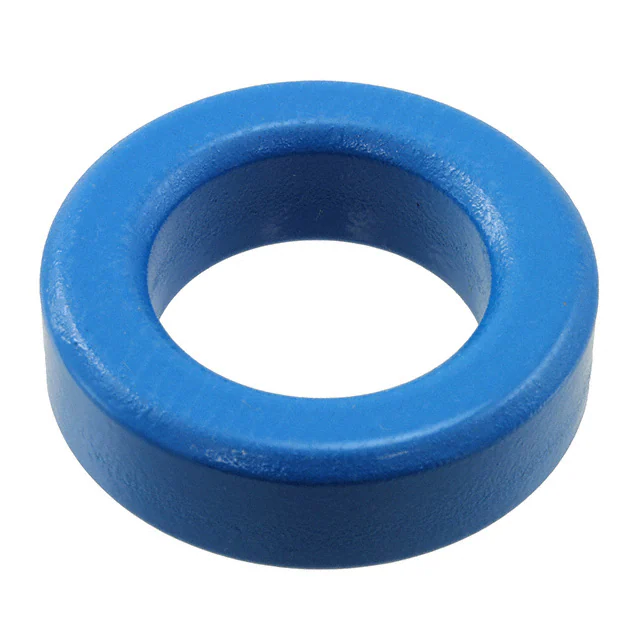

B64290L0022X087FERRITE CORE TOROID 2.56UH N87 |
1,154 |
|
برگه مشخصات |
TX42/26/13 | Box | Active | Toroid | - | N87 | 1.717" (43.60mm) | 2.56 µH | ±25% | Ungapped | - | 2200 | 1.08 | 103.0 | 95.75 | - | 9862.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
PC95ELT25X8.6-ZFERRITE CORE ELH 7.54UH 1SET |
236 |
|
برگه مشخصات |
Planar | Tray | Active | ELH, PLT | ELT 25 x 8.6 | PC95 | - | 7.54 µH | ±25% | Ungapped | - | - | 0.35 | 30.0 | 85.6 | 83.0 | 2570.0 | Uncoated | 0.248" (6.30mm) | 0.984" (25.00mm) | 0.787" (20.00mm) |
|

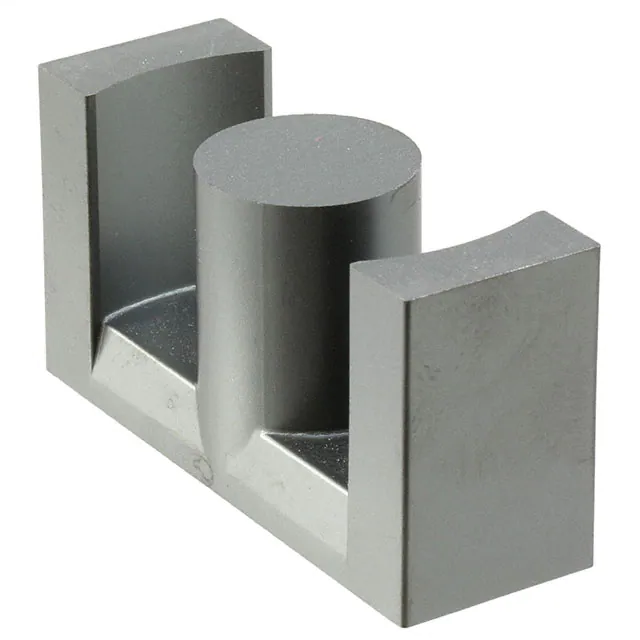

B66367G0500X187FERRITE CORE ETD N87 1PC |
1,023 |
|
برگه مشخصات |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
B66367G1000X187FERRITE CORE ETD N87 1PC |
124 |
|
برگه مشخصات |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
E55/28/21-3C94FERRITE CORE E 3C94 |
588 |
|
برگه مشخصات |
- | Bulk | Active | E | E 55 x 28 x 21 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083" (27.50mm) | 2.213" (56.20mm) | 0.827" (21.00mm) |
|
PQ32/20-3C97FERRITE CORE PQ 3C97 |
705 |
|
برگه مشخصات |
- | Bulk | Active | PQ | PQ 32 x 20 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.811" (20.60mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
B65879B0000R097FERRITE CORE PQ 5UH N97 2PCS |
2,384 |
|
برگه مشخصات |
PQ32/30 | Box | Active | PQ | PQ 32 x 30 | N97 | - | 5 µH | -20%, +30% | Ungapped | 1760.0 | 2300 | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.597" (15.17mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
|
0076076A7FERRITE CORE TOROID 56NH KOOL MU |
461 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Kool Mu HF | 1.445" (36.70mm) | 56 nH | ±8% | Ungapped | - | 60 | - | 89.8 | 67.8 | - | 6090.0 | Coated | 0.447" (11.35mm) | - | - |
|
|
5980002701FERRITE CORE TOROID 680NH 79 |
796 |
|
برگه مشخصات |
HF | Tray | Active | Toroid | - | 80 | 1.400" (35.56mm) | 680 nH | ±25% | Ungapped | - | 550 | 0.01107 | 89.0 | 80.0 | - | 7070.0 | Uncoated | 0.500" (12.70mm) | - | - |
