هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65661D0000R030FERRITE CORE P 8.3UH N30 2PCS |
388 |
|
برگه مشخصات |
P22/13 | Box | Active | P (Pot Core) | P 22 x 13 | N30 | 0.866" (22.00mm) | 8.3 µH | -20%, +30% | Ungapped | 3020.0 | 4300 | 0.5 | 31.6 | 63.0 | - | 1990.0 | Uncoated | 0.268" (6.80mm) | - | - |
|
9277012002FERRITE CORE U 77 |
113 |
|
برگه مشخصات |
- | Bulk | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 138.0 | 135.0 | 98.0 | - | 13200.0 | Uncoated | 1.000" (25.40mm) | 1.620" (41.15mm) | 0.460" (11.68mm) |
|
TX36/23/15-3C90FERRITE CORE TOROID 3C90 |
1,251 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 36 x 23 x 15 | 3C90 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.630" (16.00mm) | - | - |
|
E43/10/28-3F36FERRITE CORE E 3F36 |
4,775 |
|
برگه مشخصات |
- | Bulk | Active | E | E 43 x 10 x 28 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
B65811J0000Y038FERRITE CORE RM 12.5UH T38 2PCS |
182 |
|
برگه مشخصات |
RM8 | Box | Active | RM | RM 8 | T38 | - | 12.5 µH | -30%, +40% | Ungapped | 5910.0 | 2300 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|

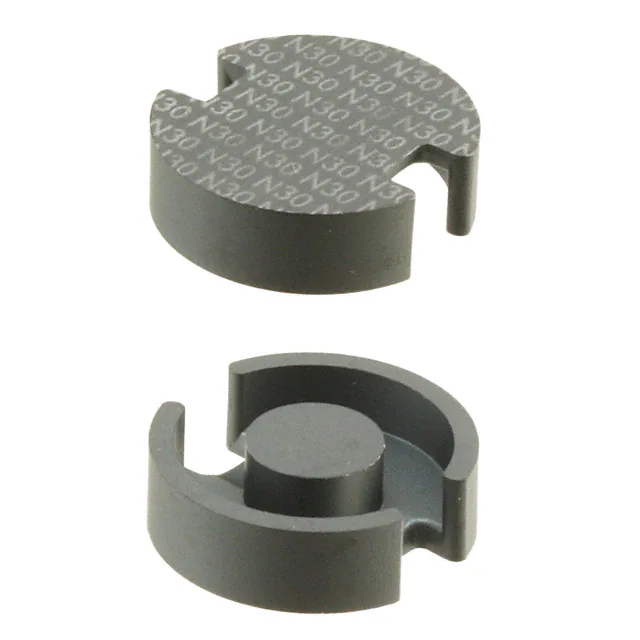

B65651W0000R030FERRITE CORE P 5.9UH N30 2PCS |
489 |
|
برگه مشخصات |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N30 | 0.724" (18.40mm) | 5.9 µH | -20%, +30% | Ungapped | 2680.0 | 4300 | 0.57 | 26.6 | 46.7 | 33.9 | 1242.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
C058206A2FERRITE CORE TOROID 68NH HIGH FL |
1,401 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | High Flux | 0.830" (21.08mm) | 68 nH | ±8% | Ungapped | - | 125 | - | 50.9 | 22.1 | - | 1120.0 | Coated | 0.280" (7.11mm) | - | - |
|
|
TX32/19/13-3C94FERRITE CORE TOROID 3C94 |
281 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 32 x 19 x 13 | 3C94 | 1.281" (32.55mm) | - | ±25% | Ungapped | 2300.0 | - | 0.99 | 76.0 | 76.5 | - | 5820.0 | Epoxy | 0.528" (13.40mm) | - | - |
|
PLT43/28/4.1-3C95FERRITE CORE PLT 3C95 |
2,596 |
|
برگه مشخصات |
- | Bulk | Active | PLT | PLT 43 x 28 x 4.1 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
|
B65811J0000R608FERRITE CORE RM PCS200 |
365 |
|
برگه مشخصات |
RM8 | Bulk | Active | RM | RM 8 | PC200 | - | - | -20%, +30% | Ungapped | 600.0 | 800 | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.650" (16.50mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B66287K0000X149FERRITE CORE I N49 |
1,991 |
|
برگه مشخصات |
I32/3/20 | Tray | Active | I | I 32 x 3 x 20 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
B65807N0100A033FERRITE CORE RM 100NH M33 2PCS |
1,791 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | M33 | - | 100 nH | ±3% | Gapped | 68.5 | 750 | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
5943002721FERRITE CORE TOROID 885NH 43 |
1,808 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 43 | - | 885 nH | -25%, +20% | Ungapped | - | 800 | 112.0 | 89.0 | 79.0 | - | 7000.0 | Plastic | 0.539" (13.70mm) | 1.449" (36.80mm) | 0.864" (21.95mm) |
|

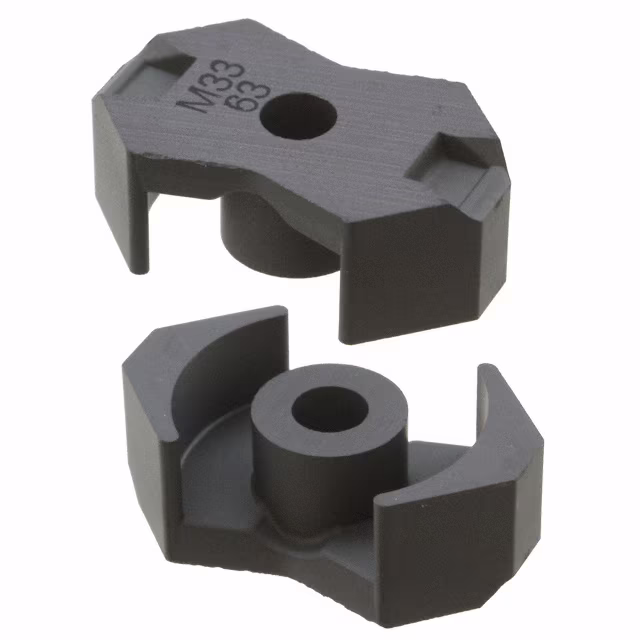

B65807N0063A033FERRITE CORE RM 63NH M33 2PCS |
2,446 |
|
برگه مشخصات |
RM6 | Box | Active | RM | RM 6 | M33 | - | 63 nH | ±3% | Gapped | 43.2 | 750 | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|

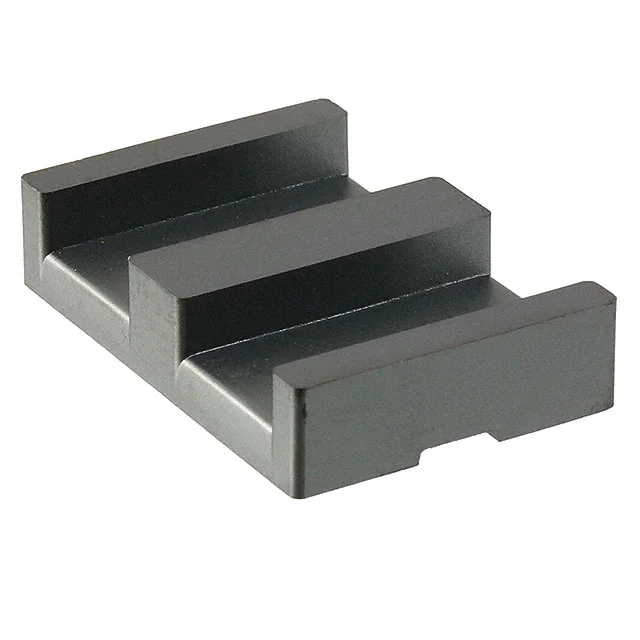

B66289G0000X187FERRITE CORE ELP N87 1PC |
888 |
|
برگه مشخصات |
ELP38/8/25 | Box | Active | ELP | ELP 38 x 8 x 25 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.324" (8.25mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
|
0059381A2FERRITE CORE TOROID 43NH EDGE |
1,176 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | Edge | 0.680" (17.27mm) | 43 nH | ±8% | Ungapped | - | 60 | - | 41.4 | 23.2 | - | 960.0 | Coated | 0.250" (6.35mm) | - | - |
|
ETD49/25/16-3C97FERRITE CORE ETD 3C97 |
237 |
|
برگه مشخصات |
- | Bulk | Active | ETD | ETD 49 x 25 x 16 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.972" (24.70mm) | 1.961" (49.80mm) | 0.657" (16.70mm) |
|
B66291G0000X187FERRITE CORE ELP N87 1PC |
872 |
|
برگه مشخصات |
ELP43/10/28 | Box | Active | ELP | ELP 43 x 10 x 28 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
5961001721FERRITE CORE TOROID 120NH 61 |
244 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | 61 | 1.299" (33.00mm) | 120 nH | ±25% | Ungapped | - | 125 | 1.2947 | 76.4 | 59.0 | - | 4512.0 | Plastic | 0.406" (10.30mm) | - | - |
|
|
TX36/23/15-3E27FERRITE CORE TOROID 3E+27 |
182 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | TX 36 x 23 x 15 | 3E27 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.630" (16.00mm) | - | - |
