رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-2A-BUBJ-CB AC100/120RELAY GEN PURPOSE DPST 25A 120V |
1,513 |
|
برگه مشخصات |
G7L | Tray | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 20.4 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-BUBJ-CB AC24RELAY GEN PURPOSE DPST 25A 24V |
979 |
|
برگه مشخصات |
G7L | Tray | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 71 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VAC | 3.6 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
T92S11D12-12RELAY GEN PURPOSE DPDT 30A 12V |
4,210 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

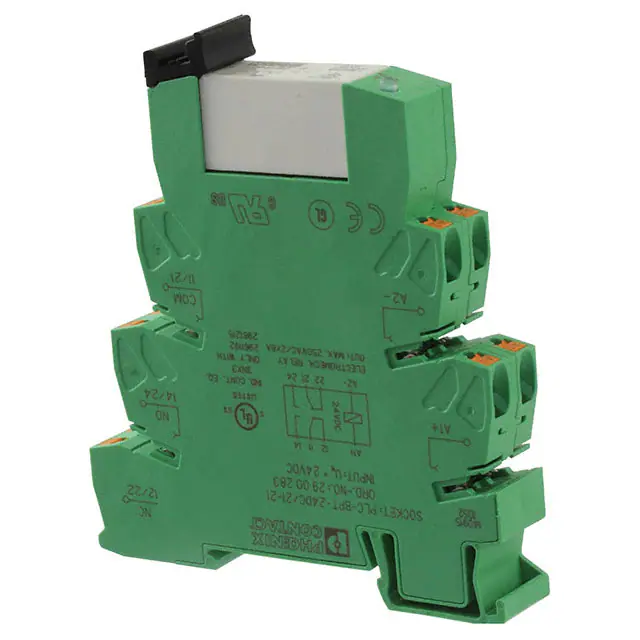

2900330RELAY GEN PURPOSE DPDT 6A 24V |
193 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
G2R-2-SND DC24(S)RELAY GEN PURPOSE DPDT 5A 24V |
402 |
|
برگه مشخصات |
G2RS | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.6 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 20 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|

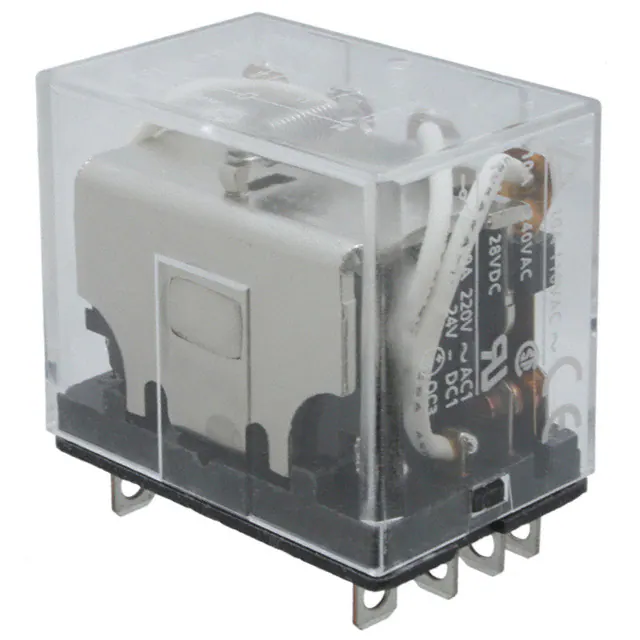

LY4-DC24RELAY GEN PURPOSE 4PDT 10A 24V |
127 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 69 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|

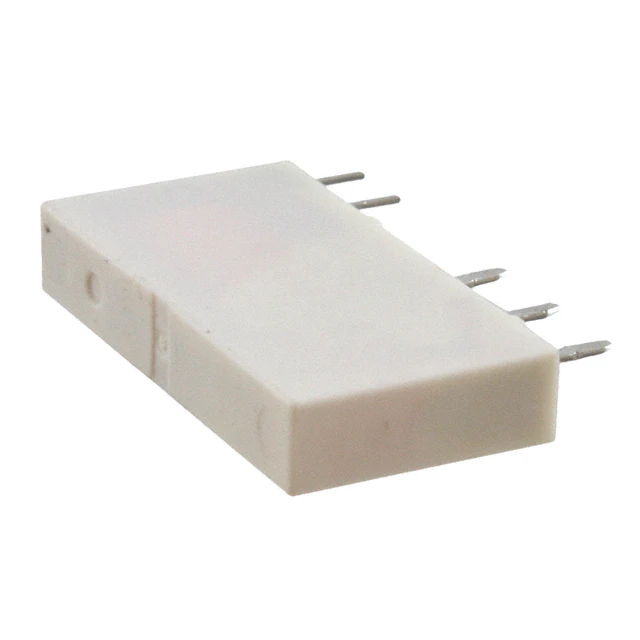

2961118RELAY GEN PURPOSE SPDT 6A 60V |
540 |
|
برگه مشخصات |
REL-MR | Bulk | Active | Through Hole | 60VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3 mA | Non Latching | - | PC Pin | - | - | - | - | 5 ms | 2.5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cULus, EAC, UR | General Purpose | - | - |
|

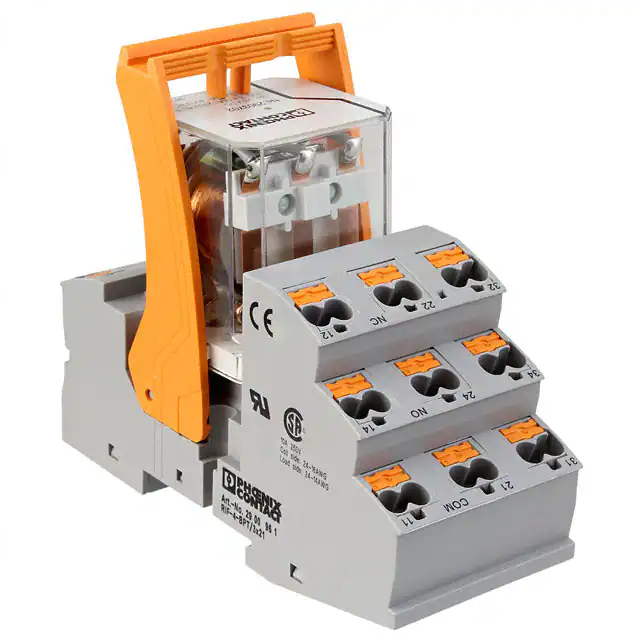

2903278RELAY GEN PURPOSE 3PDT 10A 24V |
130 |
|
برگه مشخصات |
RIF | Bulk | Active | DIN Rail | 24VDC | 3PDT (3 Form C) | 10 A | 440VAC, 250VDC - Max | 4400VA, 2500W | 56 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|

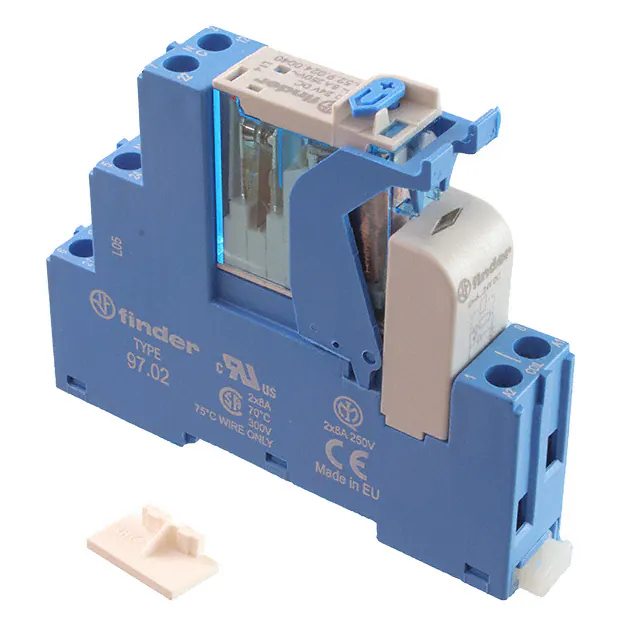

4C.02.9.024.0050SPARELAY GEN PURPOSE DPDT 8A 24V |
146 |
|
برگه مشخصات |
4C | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 20 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 17.5 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
MY4ZN-D2 DC24 (S)RELAY GEN PURPOSE 4PDT 3A 24V |
1,032 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 36.3 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
AHES3291RELAY GEN PURPOSE DPST 35A 12V |
3,687 |
|
برگه مشخصات |
HE-S | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 35 A | 277VAC - Nom | - | 157 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

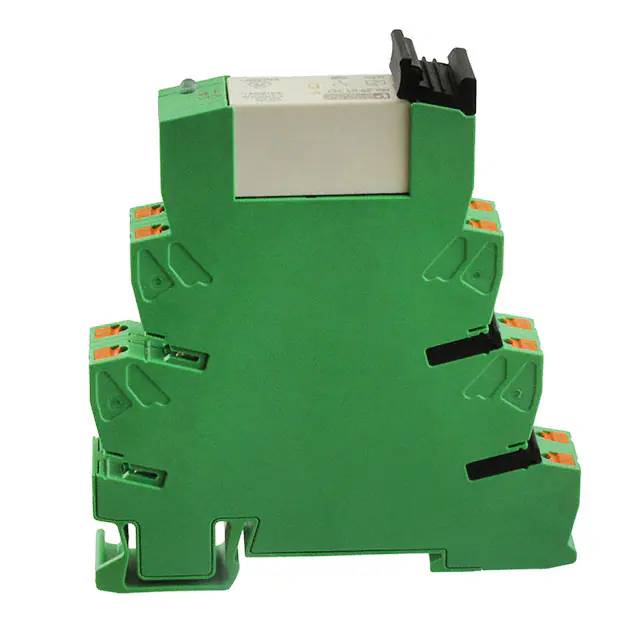

2900291RELAY GEN PURPOSE SPDT 10A 24V |
278 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|

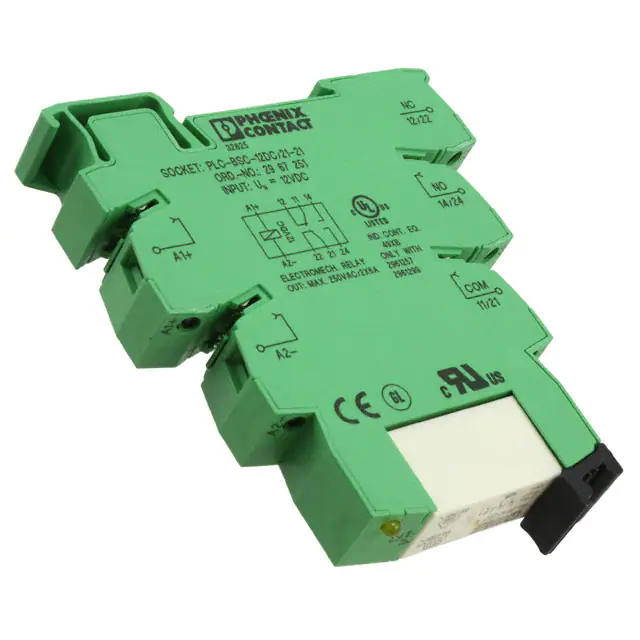

2967620RELAY GEN PURPOSE SPDT 10A 24V |
257 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
T92P7A22-120RELAY GEN PURPOSE DPST 30A 120V |
1,681 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
LY2N-D2-DC24RELAY GEN PURPOSE DPDT 10A 24V |
5,775 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
2900329RELAY GEN PURPOSE DPDT 6A 12V |
157 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
, MY4N-DC24(S), MY4ZN-DC12(S), MY4ZN-DC24(S).jpg)
|

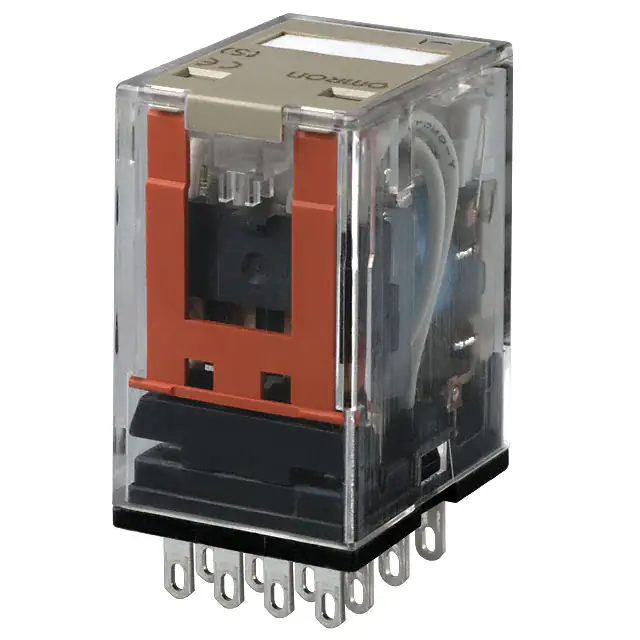

MY4N-D2 DC24 (S)RELAY GEN PURPOSE 4PDT 3A 24V |
969 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 36.3 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
AHES4291RELAY GEN PURPOSE 3PST 35A 12V |
362 |
|
برگه مشخصات |
HE-S | Tray | Active | Through Hole | 12VDC | 3PST-2NO/1NC (2 Form A, 1 Form B) | 35 A | 277VAC - Nom | - | 157 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

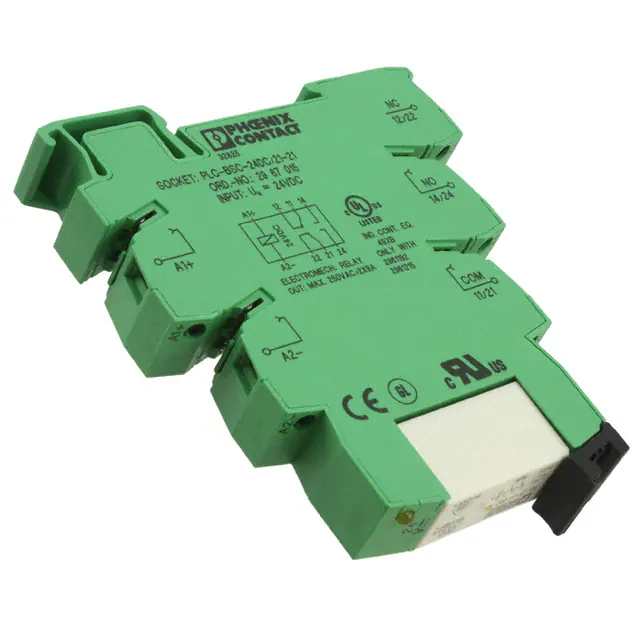

2967060RELAY GEN PURPOSE DPDT 6A 24V |
761 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
HE1AN-P-DC24V-Y5RELAY GEN PURPOSE SPST 48A 24V |
402 |
|
برگه مشخصات |
HE-PV | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 48 A | 490VAC, 48VDC - Max | 23520VA, 2304W | 80 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
