رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

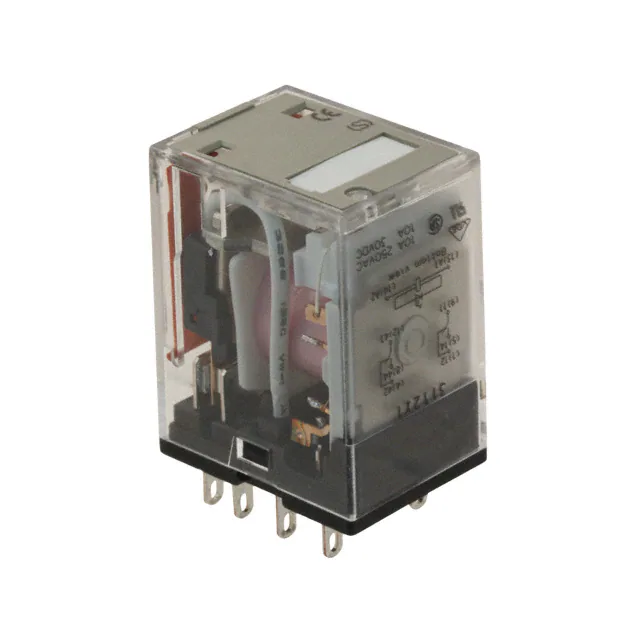

MJN2CK-DC24RELAY GEN PURPOSE DPDT 10A 24V |
382 |
|
برگه مشخصات |
MJN | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 50 mA | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
G9KB-1A DC12RELAY GEN PURPOSE SPST 50A 12V |
127 |
|
برگه مشخصات |
G9KB | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 600VDC - Max | 30000W | 235.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, cULus, TUV | General Purpose | - | - |
|
KUEP-3D15-125RELAY GEN PURPOSE SPST 10A 125V |
202 |
|
برگه مشخصات |
KUEP | Bulk | Active | Socketable | 125VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 9.6 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 93.75 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
1148703RELAY GEN PURPOSE 4PST 6A 24V |
64 |
|
برگه مشخصات |
RIF | Box | Active | DIN Rail | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC, 300VDC - Max | 1500VA, 240W | 17 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 10 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | CSA | General Purpose | - | - |
|
2901639RELAY GEN PURPOSE SPST 3.5A 24V |
58 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 2 | 3.5 A | 250VAC, 30VDC - Max | 875VA, 105W | 7 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 4 ms | 6 ms | -20°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
AEP52024RELAY GEN PURPOSE SPST 20A 24V |
45 |
|
برگه مشخصات |
AEP | Box | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 20 A | 277VAC, 400VDC - Nom | 5540VA | 163 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Hermetically | - | 18 VDC | 1 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
|
G7L-2A-X-SI DC12RELAY GEN PURPOSE DPST 30A 12V |
185 |
|
برگه مشخصات |
G7L-X | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 1000VDC - Max | 25000W | 191.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | cULus, VDE | General Purpose | - | - |
|

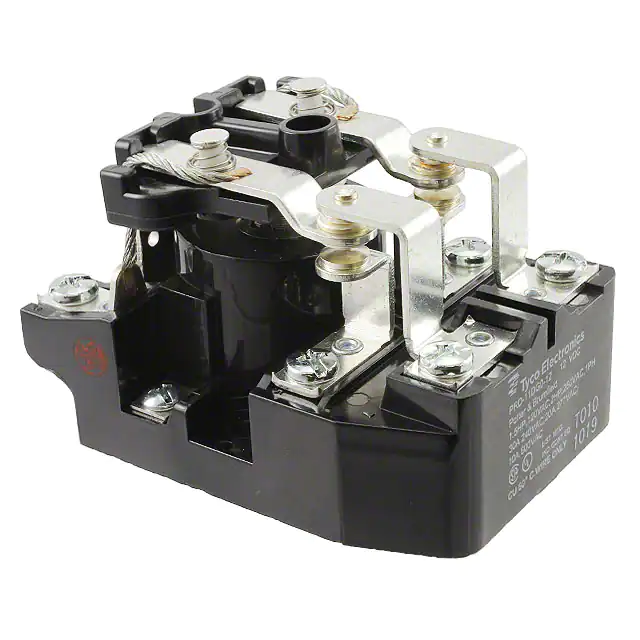

PRD-11DG0-12RELAY GEN PURPOSE DPDT 30A 12V |
50 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
KRPA-11DG-125RELAY GEN PURPOSE DPDT 10A 125V |
50 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 125VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 9.6 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 93.75 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
788-384RELAY GEN PURPOSE DPDT 6A 24V |
189 |
|
برگه مشخصات |
788 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC - Max | 1500VA | 31 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 20.4 VDC | - | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
G7L-2A-X-L DC12RELAY GEN PURPOSE DPST 20A 12V |
774 |
|
برگه مشخصات |
G7L-X | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 20 A | 1000VDC - Max | 20000W | 192 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | cULus, VDE | General Purpose | - | - |
|
2941154RELAY GEN PURPOSE SPST 3A 24V |
390 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 3 A | 250VAC, 250VDC - Max | - | 6.5 mA | Non Latching | - | Screw Terminal | - | - | - | - | 5 ms | 15 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|

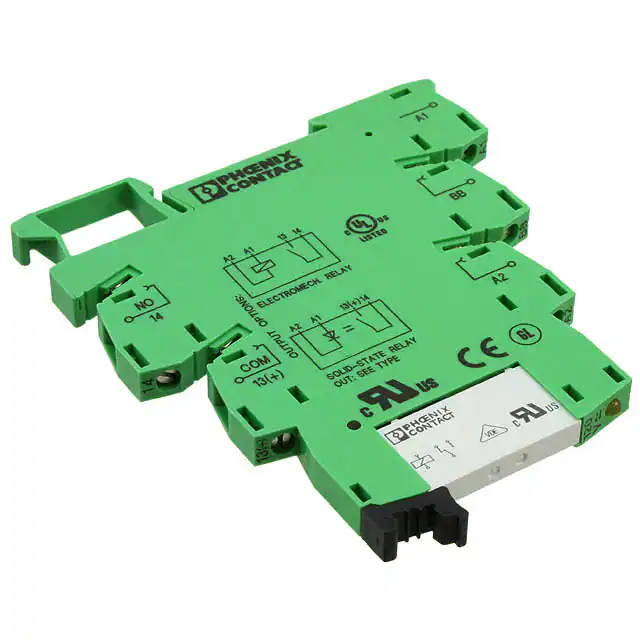

2964500RELAY GEN PURPOSE SPDT 6A 24V |
35 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | - | Screw Terminal | - | - | - | - | 8 ms | 5 ms | -20°C ~ 50°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

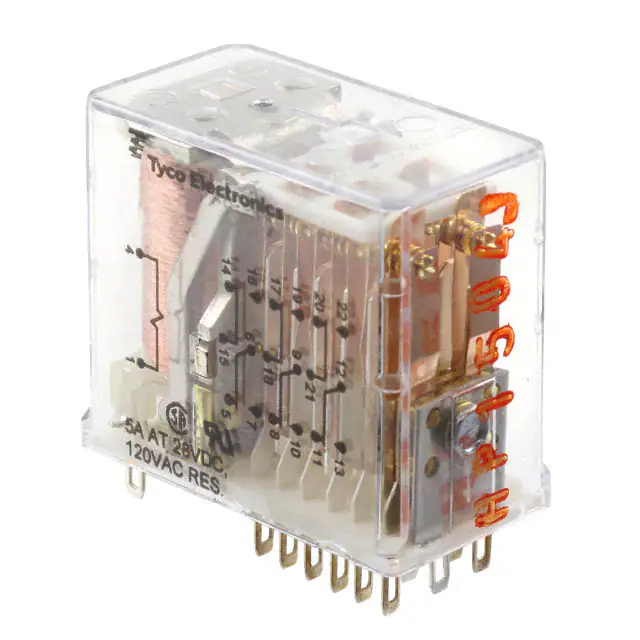

R10-E1X6-V430RELAY GEN PURPOSE 6PDT 5A 24V |
198 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 24VDC | 6PDT (6 Form C) | 5 A | 120VAC - Nom | - | 55.8 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
PRD-11AH0-120RELAY GEN PURPOSE DPDT 20A 120V |
39 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
HEV2AN-P-DC12VRELAY GEN PURPOSE DPST 20A 12V |
101 |
|
برگه مشخصات |
HE-V | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 20 A | 1000VDC - Max | 20000W | 160 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

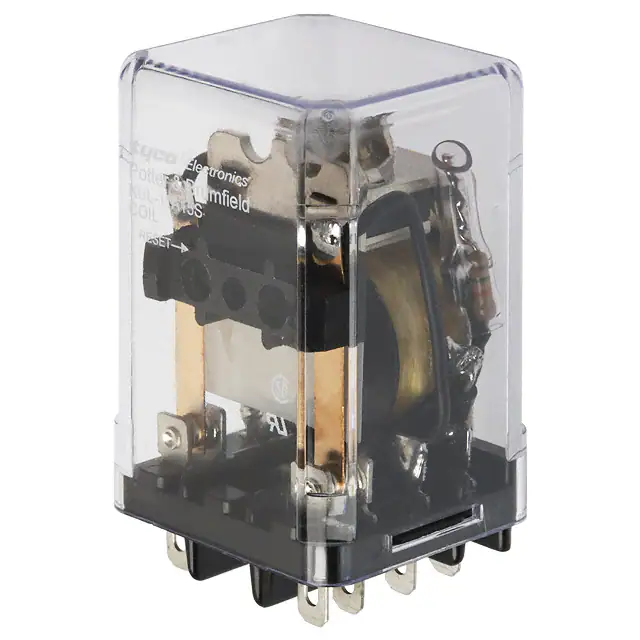

KUL-11A15S-120RELAY GEN PURPOSE DPDT 10A 120V |
100 |
|
برگه مشخصات |
KUL | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 32.4 mA | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 25 ms | 25 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
G9KA-1A-E DC24RELAY GEN PURPOSE SPST 300A 24V |
360 |
|
برگه مشخصات |
G9KA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 300 A | 1000VAC - Max | 300000VA | 208 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|
|
G7L-2A-X DC24RELAY GEN PURPOSE DPST 25A 24V |
197 |
|
برگه مشخصات |
G7L-X | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 1000VDC - Max | 25000W | 95.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | cULus, VDE | General Purpose | - | - |
|
|
G7L-2A-X DC12RELAY GEN PURPOSE DPST 25A 12V |
245 |
|
برگه مشخصات |
G7L-X | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 1000VDC - Max | 25000W | 192 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | cULus, VDE | General Purpose | - | - |
