رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP2-L2-DC12VRELAY GEN PURPOSE DPDT 15A 12V |
313 |
|
برگه مشخصات |
SP | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 25 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
2909509RELAY GEN PURPOSE DPDT 6A 24V |
321 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
T92P7D12-24RELAY GEN PURPOSE DPST 30A 24V |
1,339 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

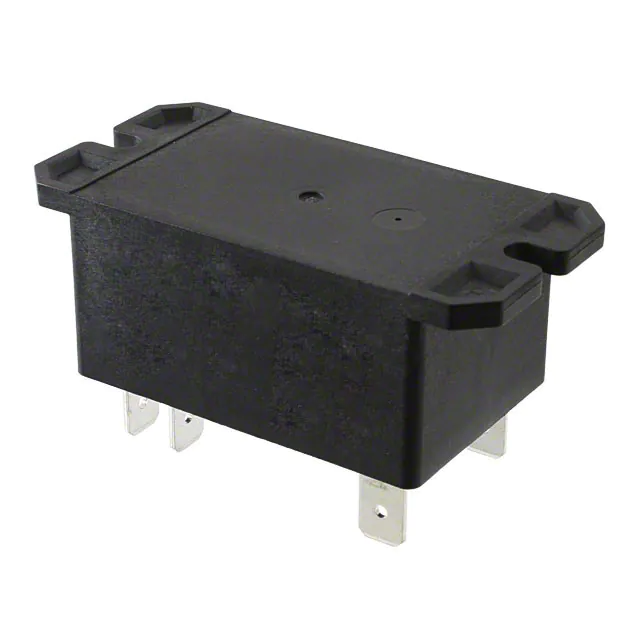

T92P7D22-24BRIDGE 1-PH KBPC8-PB10 800V 150C |
1,065 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92S7D22-12RELAY GEN PURPOSE DPST 30A 12V |
847 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92S7D22-24RELAY GEN PURPOSE DPST 30A 24V |
1,030 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92P7D22-12RELAY GEN PURPOSE DPST 30A 12V |
969 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

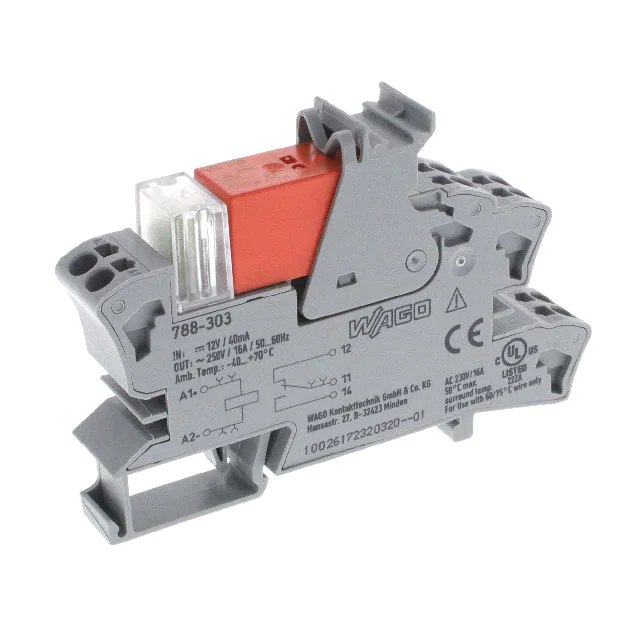

788-303RELAY GEN PURPOSE SPDT 16A 12V |
288 |
|
برگه مشخصات |
788 | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 36 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 10.8 VDC | - | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
788-312RELAY GEN PURPOSE DPDT 8A 24V |
217 |
|
برگه مشخصات |
788 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 19 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 21.6 VDC | - | 8 ms | 13 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|

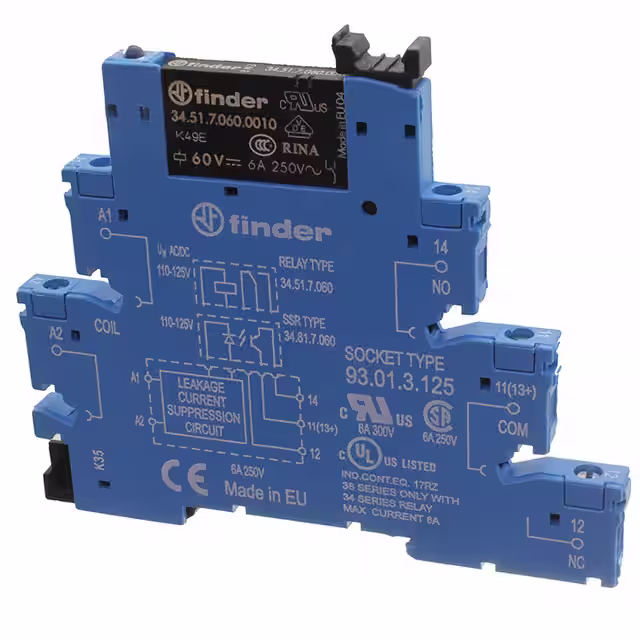

38.51.3.125.0060RELAY GEN PURPOSE SPDT 6A 125V |
190 |
|
برگه مشخصات |
38 | Bulk | Active | DIN Rail | 125VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC/DC | 12.5 VAC/DC | 5 ms | 6 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
SP2-P-DC24VRELAY GEN PURPOSE DPDT 15A 24V |
775 |
|
برگه مشخصات |
SP | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 12.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
T92S7A12-120RELAY GEN PURPOSE DPST 30A 120V |
962 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92P7A22-240RELAY GEN PURPOSE DPST 30A 240V |
4,526 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
T92S11D12-24RELAY GEN PURPOSE DPDT 30A 24V |
1,650 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
T92S11D22-24RELAY GEN PURPOSE DPDT 30A 24V |
867 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92P11D22-12RELAY GEN PURPOSE DPDT 30A 12V |
801 |
|
برگه مشخصات |
T92 | Tray | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
T92S11D22-12RELAY GEN PURPOSE DPDT 30A 12V |
1,495 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
HE1AN-W-DC12V-Y6RELAY GEN PURPOSE SPST 90A 12V |
5,497 |
|
برگه مشخصات |
HE-PV | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 90 A | 490VAC, 48VDC - Max | 44100VA, 4320W | 160 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
|
|
HE1AN-W-DC24V-Y6RELAY GEN PURPOSE SPST 90A 24V |
4,390 |
|
برگه مشخصات |
HE-PV | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 90 A | 490VAC, 48VDC - Max | 44100VA, 4320W | 80 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
|
|
T92P11A22-120RELAY GEN PURPOSE DPDT 30A 120V |
1,490 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
