رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6B-47BND DC24RELAY GEN PURPOSE SPST 5A 24V |
222 |
|
برگه مشخصات |
G6B-4 | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10.7 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
G6B-4BND DC24RELAY GEN PURPOSE SPST 5A 24V |
75 |
|
برگه مشخصات |
G6B-4 | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10.7 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CE, CSA, UR, VDE | General Purpose | - | - |
|
LEV200A6NAFRELAY GEN PURPOSE SPST 500A 48V |
73 |
|
برگه مشخصات |
LEV200, KILOVAC | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (DM) (1 Form X) | 500 A | - | - | 331 mA | Non Latching | - | Stud | Sealed - Hermetically | - | 38 VDC | 2 VDC | 25 ms | 12 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
G9EA-1-B DC12RELAY GEN PURPOSE SPST 60A 12V |
320 |
|
برگه مشخصات |
G9EA-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000W | 417 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|

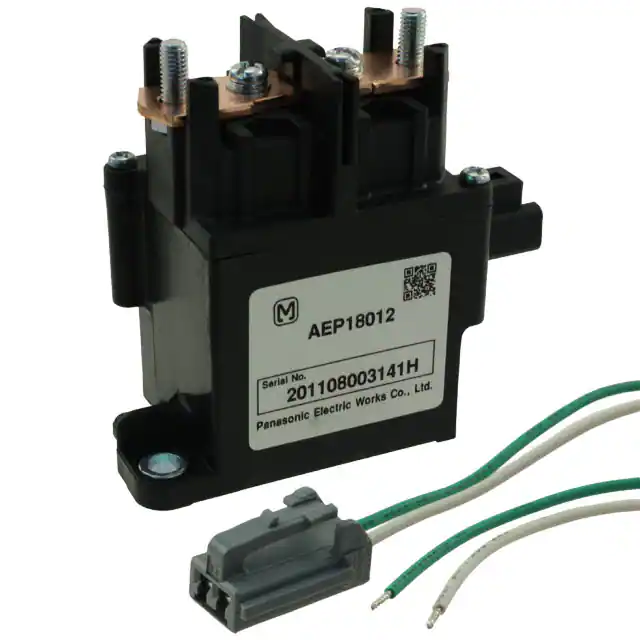

AEP18012RELAY SPST 80A 12V |
43 |
|
برگه مشخصات |
AEP | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 80 A | 277VAC, 400VDC - Nom | 22160VA | 375 mA | Non Latching | - | Stud | Sealed - Hermetically | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
|

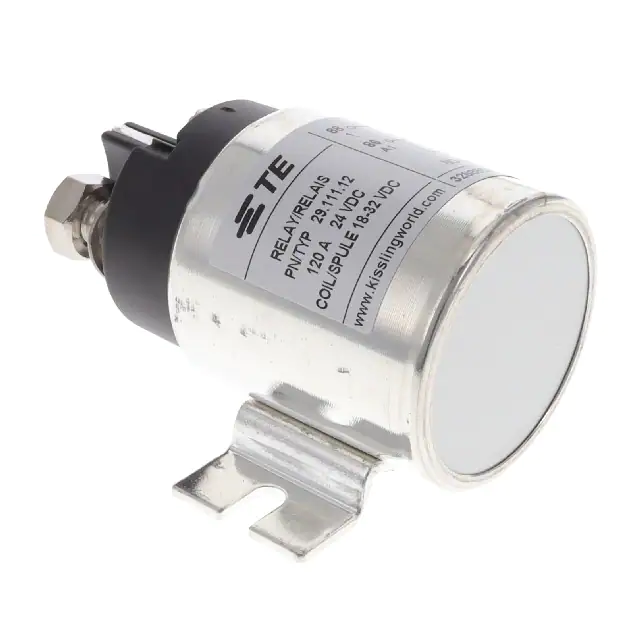

29-111-12RELAY GEN PURPOSE SPST 120A |
40 |
|
برگه مشخصات |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 120 A | - | 10W | 350 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 35 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
G9EA-1-B-CA DC12RELAY GEN PURPOSE SPST 30A 12V |
75 |
|
برگه مشخصات |
G9EA-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | 12000W | 417 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|
|
G9EA-1-B-CA DC24RELAY GEN PURPOSE SPST 30A 24V |
54 |
|
برگه مشخصات |
G9EA-1 | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | 12000W | 208 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 18 VDC | 1.92 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|
B07D034BC2-0053RELAY GEN PURPOSE DPDT 10A 26.5V |
36 |
|
برگه مشخصات |
07, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-5757/23 |
|

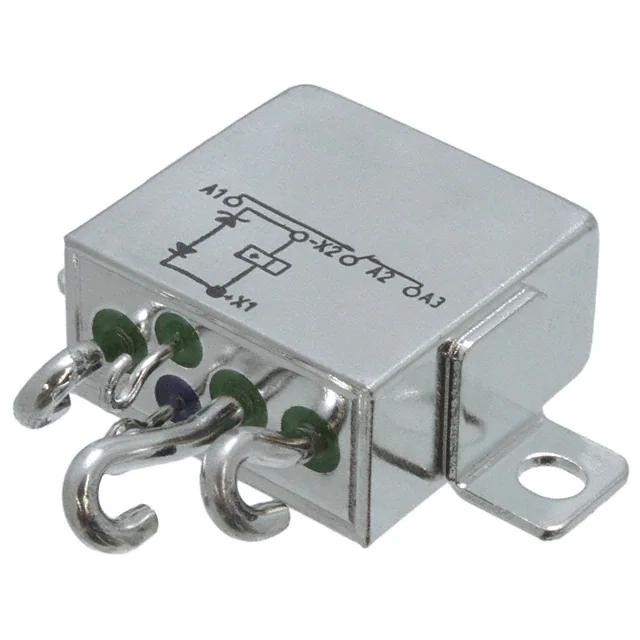

FCA-125-19RELAY GEN PURPOSE SPDT 25A 28V |
83 |
|
برگه مشخصات |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-6106/19 |
|

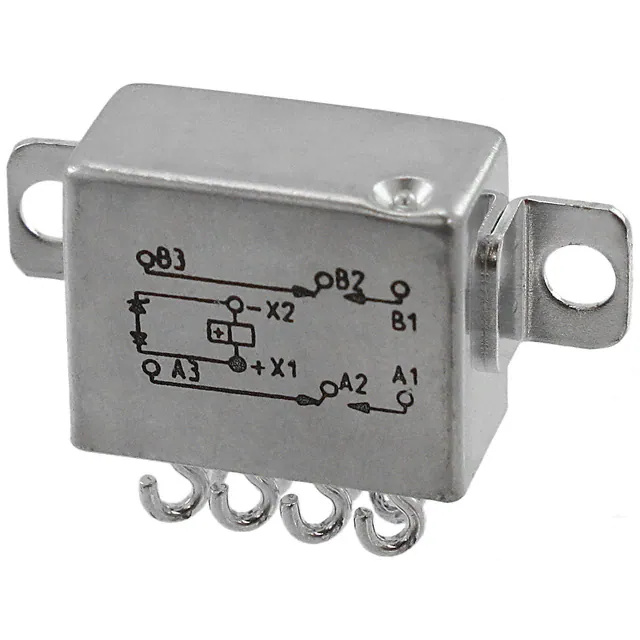

FCB-205-0226MRELAY GEN PURPOSE DPDT 5A 28V |
263 |
|
برگه مشخصات |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/2 |
|
HFW5A1201G00RELAY GEN PURPOSE DPDT 5A 12V |
87 |
|
برگه مشخصات |
HFW5A, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | - | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|

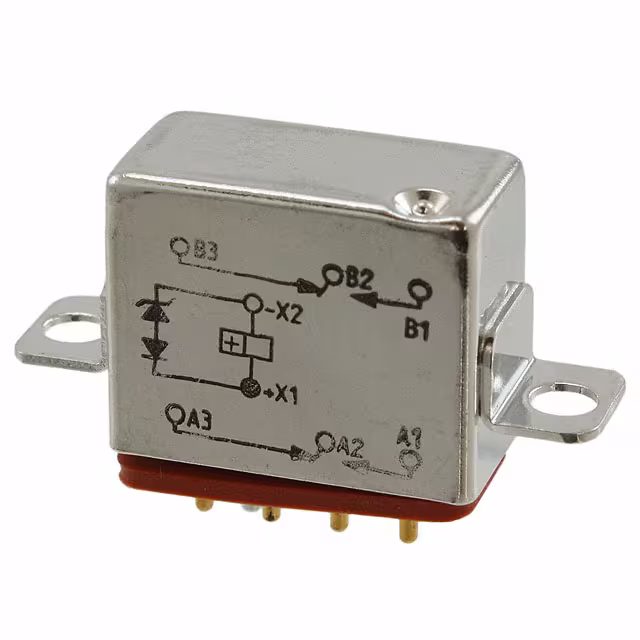

FCB-205-0224MRELAY GEN PURPOSE DPDT 5A 28V |
90 |
|
برگه مشخصات |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/2 |
|
FCB-205-0219MRELAY GEN PURPOSE DPDT 5A 28V |
46 |
|
برگه مشخصات |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
FCA-125-22RELAY GEN PURPOSE SPDT 25A 28V |
32 |
|
برگه مشخصات |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 87.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
G9EC-1-B DC24RELAY GEN PURPOSE SPST 200A 24V |
34 |
|
برگه مشخصات |
G9EC-1 | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 469 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 18 VDC | 1.92 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | cURus | General Purpose | - | - |
|
|
29-321-12RELAY GEN PURPOSE SPDT 300A 28V |
27 |
|
برگه مشخصات |
29, KISSLING | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 300 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

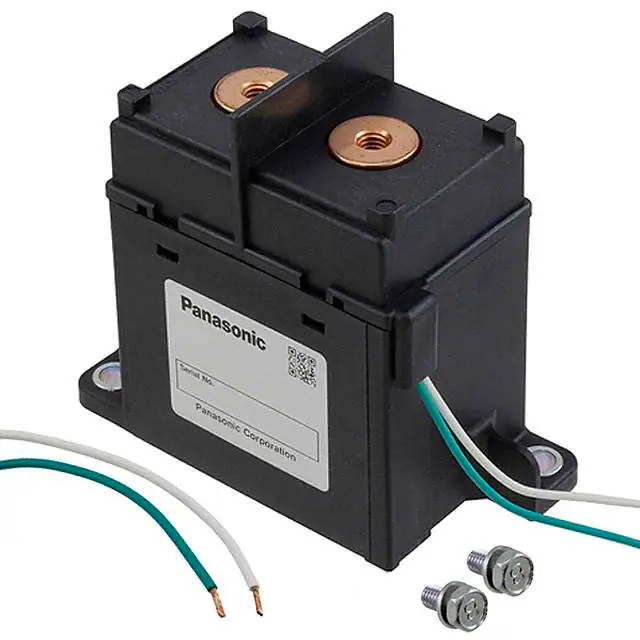

AEP17024RELAY GEN PURPOSE SPST 200A 24V |
43 |
|
برگه مشخصات |
AEP | Bulk | Last Time Buy | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 200 A | 277VAC, 400VDC - Nom | 55400VA | 250 mA | Non Latching | - | Screw Terminal, Wire Leads | - | - | 18 VDC | 2 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
|
FCA-325-BZ4RELAY GEN PURPOSE 3PDT 25A 28V |
374 |
|
برگه مشخصات |
FCA-325, CII | Bulk | Active | Through Hole | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 96.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | - | General Purpose | - | - |
|

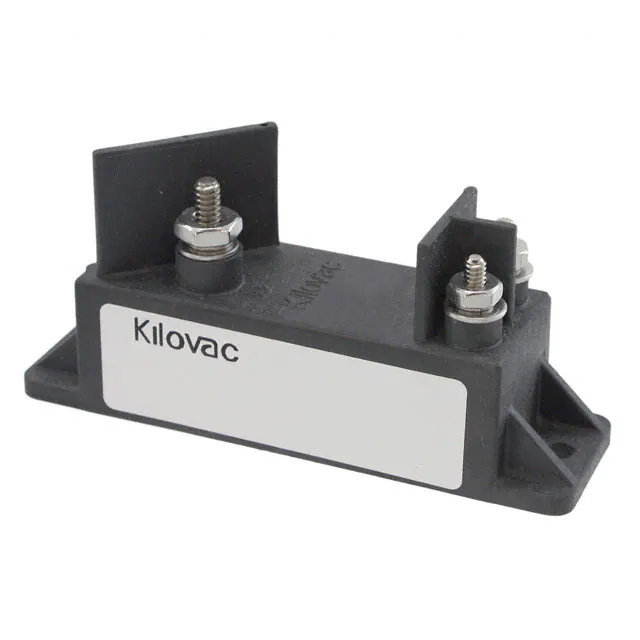

K81AB57RELAY GEN PURPOSE SPST 10A 26.5V |
2 |
|
برگه مشخصات |
K81A, KILOVAC | Bulk | Active | Chassis Mount | 26.5VDC | SPST-NO (1 Form A) | 10 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | Stud | Sealed - Fully | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
